Pavement Condition Survey: AI-Powered Road Assessment for Local Councils

GeoAI delivers AI-powered pavement condition surveys for local councils and road authorities. Our mobile scanning platform measures IRI roughness, rutting depth, surface texture, and pavement defects in a single pass. All outputs comply with Austroads standards and feed directly into council pavement management systems.

What Is a Pavement Condition Survey?

A pavement condition survey measures the physical state of a road surface across a defined network. Engineers use condition data to assess ride quality, structural integrity, and surface defects. In addition, the results support maintenance planning, capital works programming, and funding submissions to government authorities.

Specifically, a pavement condition survey produces two key indices. First, the Pavement Condition Index (PCI) captures roughness, crocodile cracking, rutting, and patching. Second, the Surface Condition Index (SCI) records roughness, environmental cracking, stripping, and potholes. Together, these indices give asset managers a complete picture of road network health.

Key pavement condition metrics explained

International Roughness Index (IRI) is the primary measure of road ride quality. GeoAI records an IRI score for each 10-metre segment and averages the result across each road section. Councils and road authorities use these IRI scores to prioritise resurfacing and rehabilitation works across their networks.

Rutting measures the vertical deformation of a pavement surface in the wheel path. The standard measure for rutting is the maximum depth under a transverse 1.2-metre straight edge. Furthermore, rutting above 20mm typically signals structural pavement failure. As a result, early detection through regular condition surveys prevents far more costly rehabilitation later.

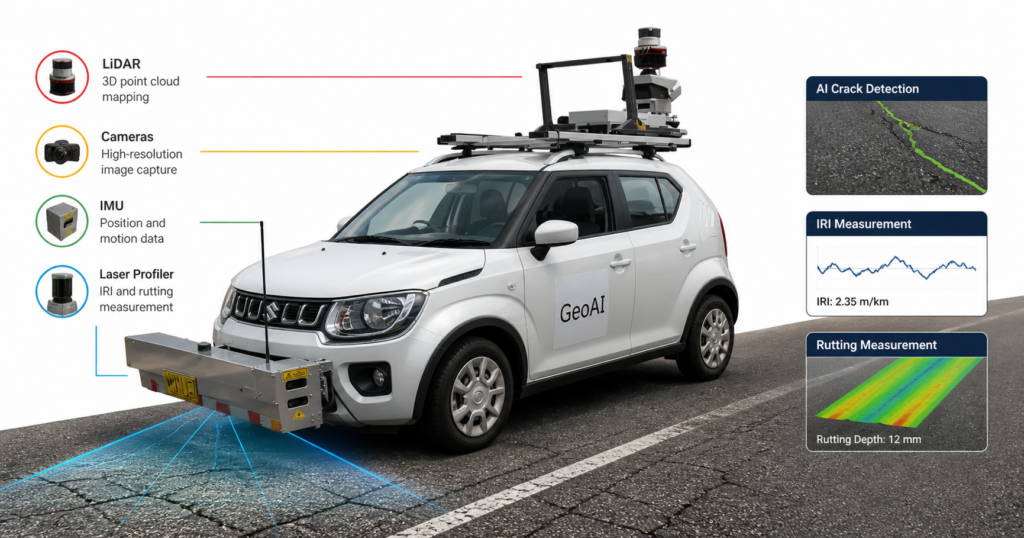

AI-powered pavement condition survey vehicle capturing road defects, cracks, IRI, and rutting data with LiDAR and cameras. — GeoAI vehicle performing a pavement condition survey using AI, LiDAR, and laser profiling to detect cracks and measure IRI

Why Councils Need a Regular Pavement Condition Survey

Road authorities manage thousands of kilometres of local and regional roads. Every year, councils must justify road maintenance budgets and capital works programmes to elected representatives and state governments. Accordingly, evidence-based condition data is essential for making defensible budget decisions.

Funding requirements and reporting obligations

Many government funding programmes tie road funding allocations to measurable pavement condition outcomes. For example, councils that submit current, Austroads-compliant condition data secure infrastructure funding more effectively. In contrast, councils without up-to-date survey data must rely on estimates, which carry a higher risk of funding rejection.

Moreover, the Austroads Road Asset Data Standard (RADS) provides road agencies with a specification for the data that supports common operational activities. It establishes a common understanding of data meaning to ensure appropriate use and interpretation by all stakeholders. Councils that align their condition surveys with RADS requirements benefit from stronger reporting consistency and better outcomes in funding assessments.

The cost of delayed pavement surveys

Deferred pavement maintenance costs far more than preventive treatment. For instance, a road that receives a reseal at the right time costs a fraction of the reconstruction bill that follows structural failure. Consequently, regular condition surveys allow councils to intervene at the optimal point in the pavement deterioration cycle.

Furthermore, regular surveys help councils demonstrate duty of care for road safety. In particular, undetected defects such as potholes and edge breaks create liability risks for local government. As a result, a current pavement condition survey provides both a maintenance planning tool and a risk management record.

Surface texture affects skid resistance and drainage performance. Consequently, most road authorities include texture measurement in their annual pavement condition survey programmes alongside IRI and rutting data.

Manual Pavement Inspection

Slow, limited kilometers per day
Results vary between inspectors
No immediate IRI or rutting measurement
No GPS referenced defect records
Cannot feed into pavement management system

GeoAI Pavement Condition Survey

No lane closures, surveys at traffic speed
Fast, entire networks surveyed quickly
Consistent AI-automated results every time
IRI, rutting, and tecture measured per segment
Every defect GPS-referenced with polygon
Direct import into council PMS platform

How GeoAI Conducts a Pavement Condition Survey

GeoAI deploys a mobile scanning vehicle that operates at normal traffic speed across the road network. Importantly, the vehicle requires no lane closures or traffic control in most circumstances. This means the survey causes no disruption to road users, residents, or surrounding businesses.

One pass captures everything simultaneously

The vehicle carries three sensor systems that collect data at the same time. First, a roof-mounted 3D LiDAR sensor fires millions of laser pulses per second to build a dense point cloud of the road corridor. Second, high-resolution cameras capture detailed imagery of the pavement surface and roadside assets. Third, a front-mounted laser profiler measures IRI, rutting depth, and surface texture as the vehicle moves forward.

As a result of collecting all data simultaneously, nothing requires a return visit to the same road segment. In addition, simultaneous collection means that IRI measurements, defect detections, and asset locations all share the same GPS timestamp and coordinate reference. Consequently, councils receive a spatially consistent dataset with no gaps between data layers.

How the AI detects and classifies pavement defects

After the vehicle completes its pass, GeoAI’s AI models process the imagery automatically. First, machine learning algorithms scan high-resolution camera footage to find surface defects. Subsequently, the system maps each detected defect into the 3D point cloud with a precise GPS-referenced polygon boundary. Finally, the AI assigns each defect a severity classification based on Austroads criteria.

Compared to manual inspection, this approach delivers significantly more consistent results. For instance, a manual inspector may classify the same crack differently depending on lighting or fatigue. In contrast, GeoAI’s AI model applies identical classification criteria to every defect across the entire network.

Pavement defects GeoAI detects and classifies

Longitudinal cracking: cracks running parallel to the road, often indicating surface fatigue
Transverse cracking: cracks running across the road, commonly caused by thermal movement
Crocodile cracking: interconnecting cracking resembling crocodile hide, indicating structural failure in base layers
Potholing: bowl-shaped holes caused by progressive pavement breakdown
Edge breaks: deterioration at the road edge where pavement meets the verge
Ravelling: progressive loss of aggregate and binder from the road surface
Patching: previously repaired areas that contribute to PCI calculations under Austroads methodology

Automatic calculation of PCI and SCI indices

After AI detection, GeoAI calculates PCI and SCI scores for every road segment. The PCI of a road section is a function of roughness, the extent and severity of crocodile cracking, rutting, and patching. In addition, GeoAI reports IRI scores per 10-metre segment, consistent with Austroads survey methodology. As a result, council engineers receive condition indices that load directly into pavement management systems without additional processing.

How GeoAI Data Integrates with Council Pavement Management Systems

GeoAI delivers all pavement condition data in formats that load directly into council pavement management systems. Importantly, no custom integration work is necessary. Engineers import GeoAI outputs into their existing platforms immediately after receiving the data.

Compatible systems and delivery formats

GeoAI delivers data compatible with pavement management platforms including dTIMS, SMEC PMS, Moloney, and council-specific GIS implementations. In addition, all spatial data exports as GeoPackage or Shapefile, which integrates with QGIS, ArcGIS Pro, and web GIS platforms. Specifically, the full list of deliverables includes:

Pavement condition report — IRI, rutting, texture, PCI, and SCI per segment in spreadsheet and PDF format
GeoPackage and Shapefile — spatially referenced defect polygons and condition indices for GIS import
LAS and LAZ point cloud — 3D spatial data compatible with national spatial services specifications
Asset register update — road asset inventory captured alongside pavement data in the same survey pass
Digital twin access — web-based 3D viewer for remote visualisation and measurement of pavement condition

Turnaround Time and Project Delivery

GeoAI delivers processed pavement condition data within two to five business days of completing fieldwork. For example, a council that finishes fieldwork in early October receives condition data before the end of that month. In addition, GeoAI provides a confirmed delivery schedule at the quoting stage so councils can plan budget submissions and capital works programming around data availability.

What happens after you engage GeoAI

First, GeoAI issues a confirmed project timeline that includes fieldwork dates, processing time, and the delivery date. Next, fieldwork proceeds at normal traffic speed with no disruption to road users. Subsequently, the team processes all sensor data and runs AI detection across the entire dataset. Finally, councils receive their complete condition data package in agreed formats, ready for immediate import into their pavement management system.

Ready to run a pavement condition survey across your road network? Talk to the GeoAI team about your project.

Talk to the GeoAI team today →

Frequently Asked Question (FAQ)

What does a pavement condition survey measure?

A GeoAI pavement condition survey measures International Roughness Index (IRI), rutting depth, surface texture, and a full pavement defect inventory. In addition, GeoAI calculates Pavement Condition Index (PCI) and Surface Condition Index (SCI) scores for every road segment. These indices comply with Austroads methodology and load directly into council pavement management systems.

Does GeoAI’s pavement condition survey comply with Austroads standards?

Yes. All GeoAI surveys comply with the Austroads Guide to Pavement Technology Part 5 and the Austroads Road Asset Data Standard (RADS). Furthermore, GeoAI aligns with IPWEA AUS-SPEC worksections for road asset data collection. The laser profiler calibration follows Austroads Test Method AG:AM/T006, ensuring consistent and auditable measurement results.

How often should councils conduct a pavement condition survey?

Most councils conduct pavement condition surveys annually or biennially. Annual surveys provide the most current data for budget submissions and capital works planning. In addition, annual surveys allow councils to track pavement deterioration rates over time, making it possible to schedule treatment at the optimal cost point rather than responding to failure after it occurs.

How does GeoAI pavement data integrate with council PMS platforms?

GeoAI delivers condition data in formats compatible with dTIMS, SMEC PMS, Moloney, and ArcGIS-based council systems. Specifically, all spatial data exports as GeoPackage or Shapefile with condition indices attached to each road segment. As a result, council engineers import GeoAI data directly into their pavement management system without additional processing or reformatting.

Does the GeoAI survey require lane closures?

No. GeoAI’s mobile scanning vehicle operates within the normal traffic stream at standard road speed. In most circumstances, the survey requires no lane closures, traffic controllers, or road works signage. This significantly reduces the cost and disruption of data collection compared to traditional inspection methods that require crew access to the live carriageway.
